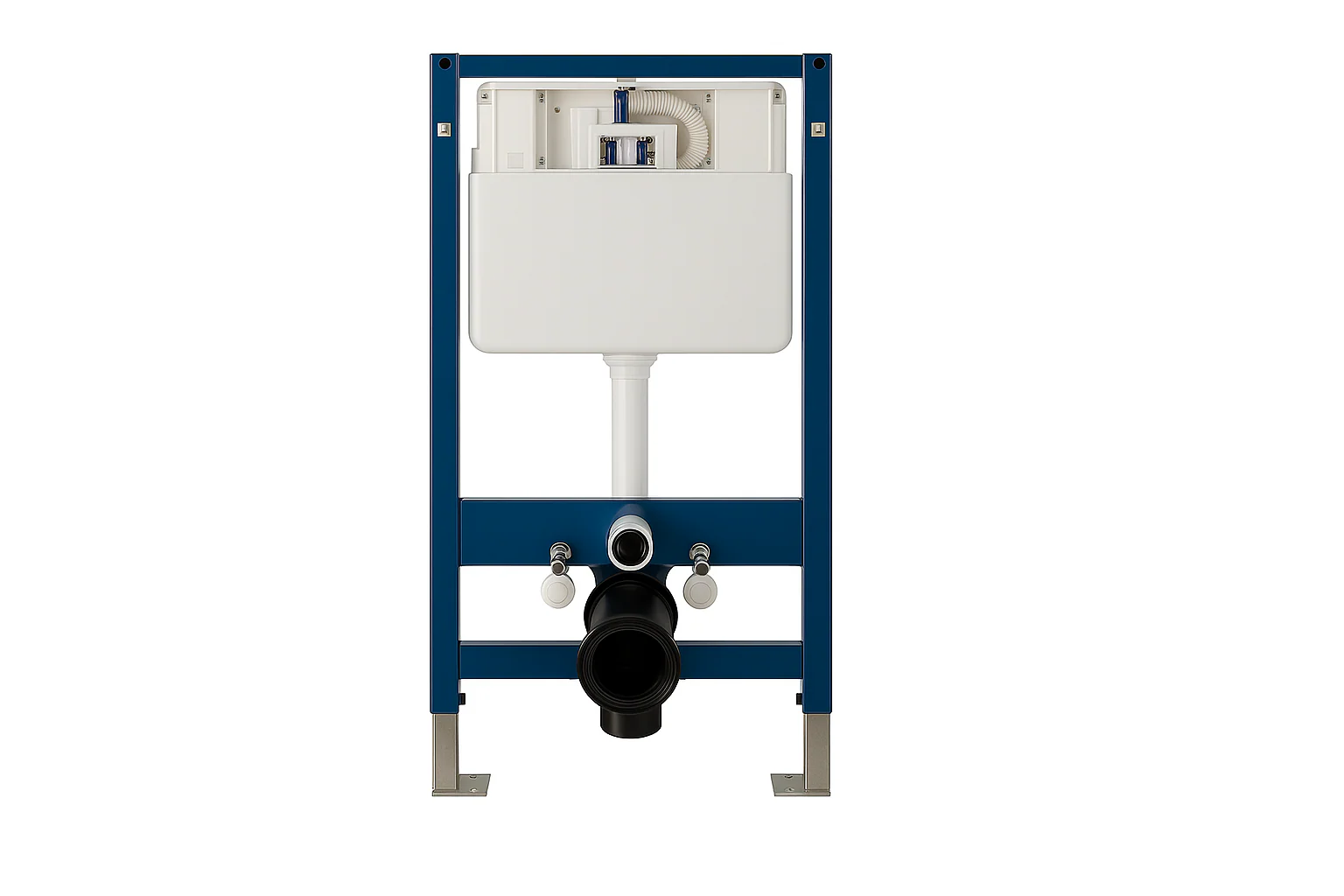

Concealed Cistern Frame – 1.12m Wall Installation System

Upgrade your bathroom setup with this robust concealed cistern frame—engineered for seamless compatibility with wall-hung WCs and designed to deliver long-lasting reliability and installation flexibility.

Cistern Internals may differ between batches, Frame and internals will work the same

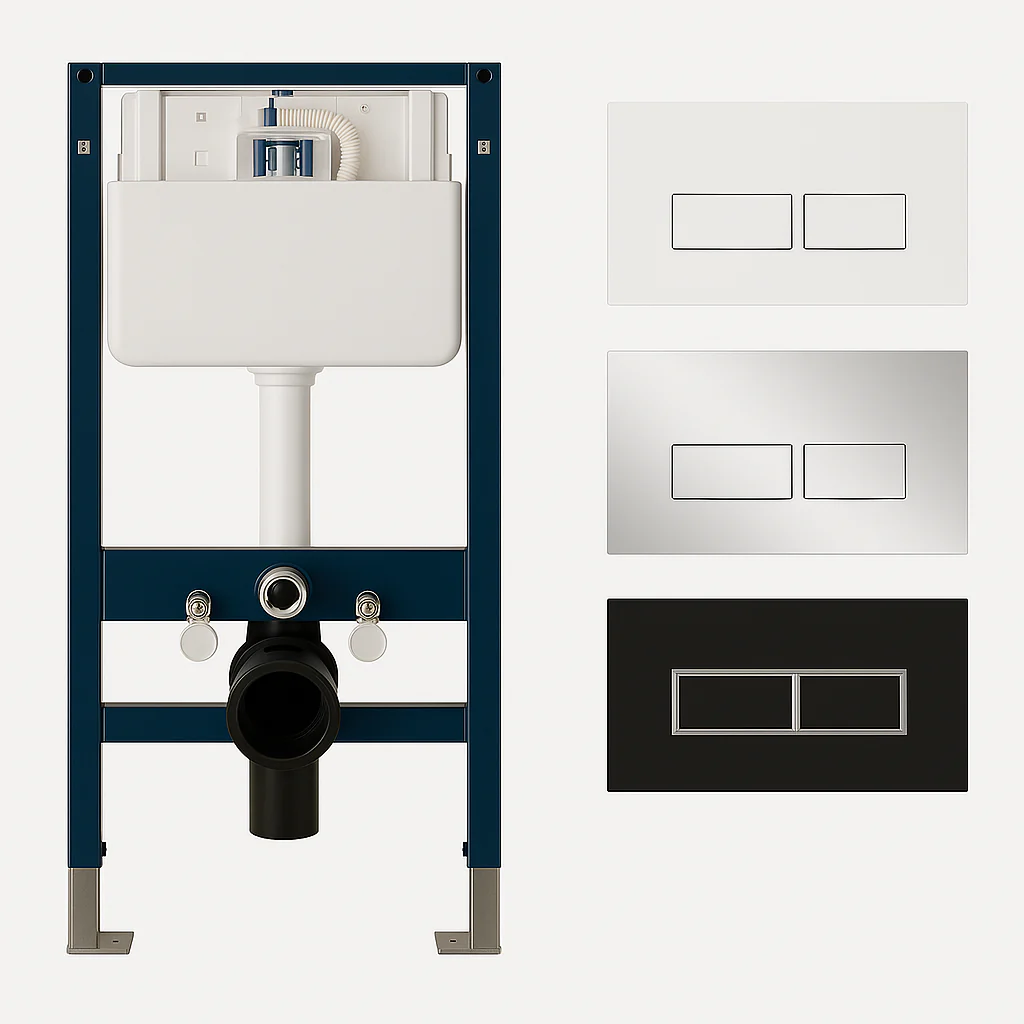

Available as a standalone unit or paired with a flush plate in your choice of finish.

Frame Features:

• Heavy-duty powder-coated metal framework

• Self-supporting structure for on-wall or studded wall installation

• Fully insulated to prevent condensation build-up

• Rear or top water supply inlet options

• Dual-flush operation: 6L full / 3L half flush

• Spring-lock adjustable anchor feet (0 to 200 mm) for precise positioning

• Maintenance-friendly front access with no tools required

• Visual indicators for accurate centering and leveling

• Includes WC bolts, brackets, and full installation fixings

• Dimensions: H 1120 mm x W 510 mm x D 125 mm to 250 mm adjustable

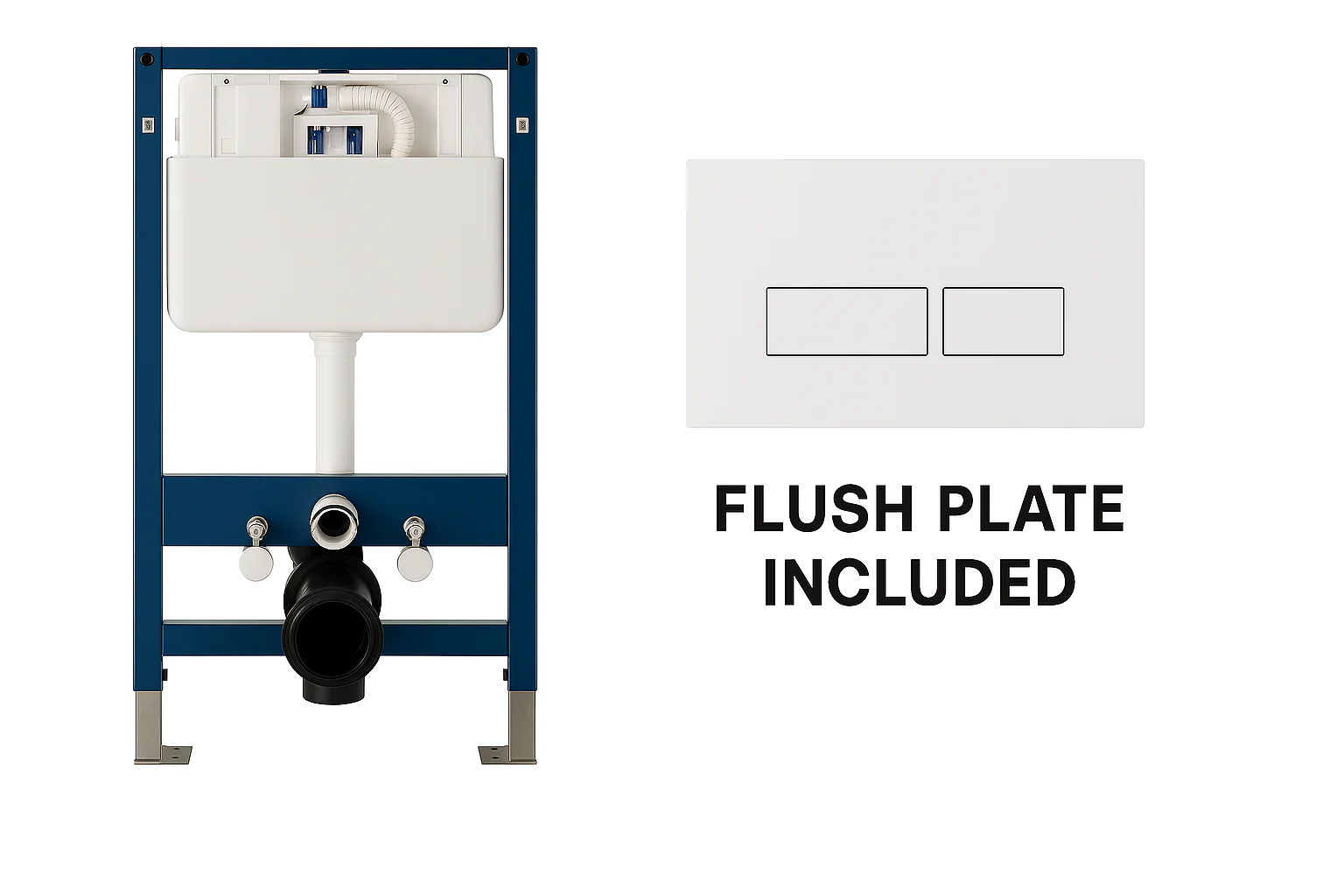

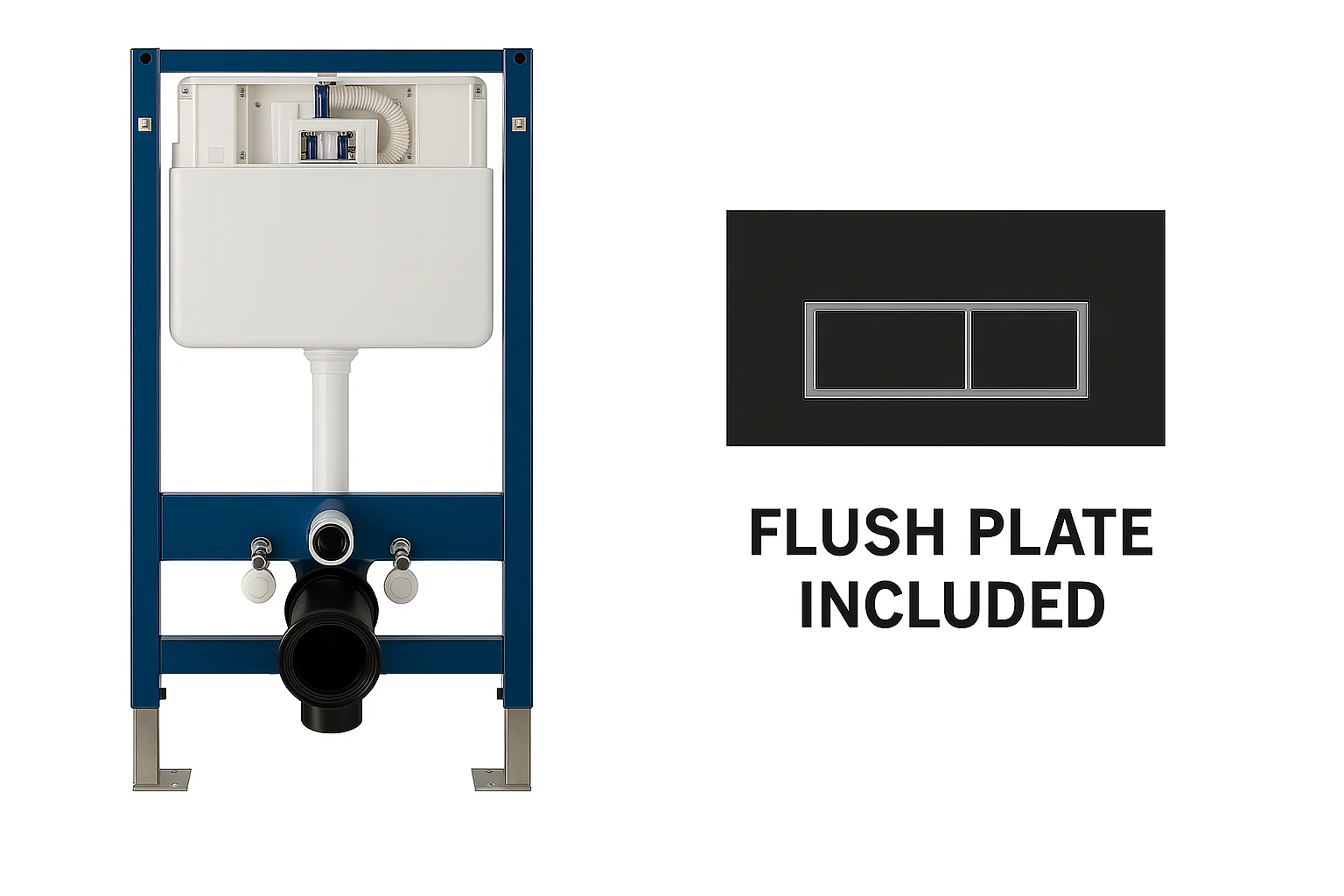

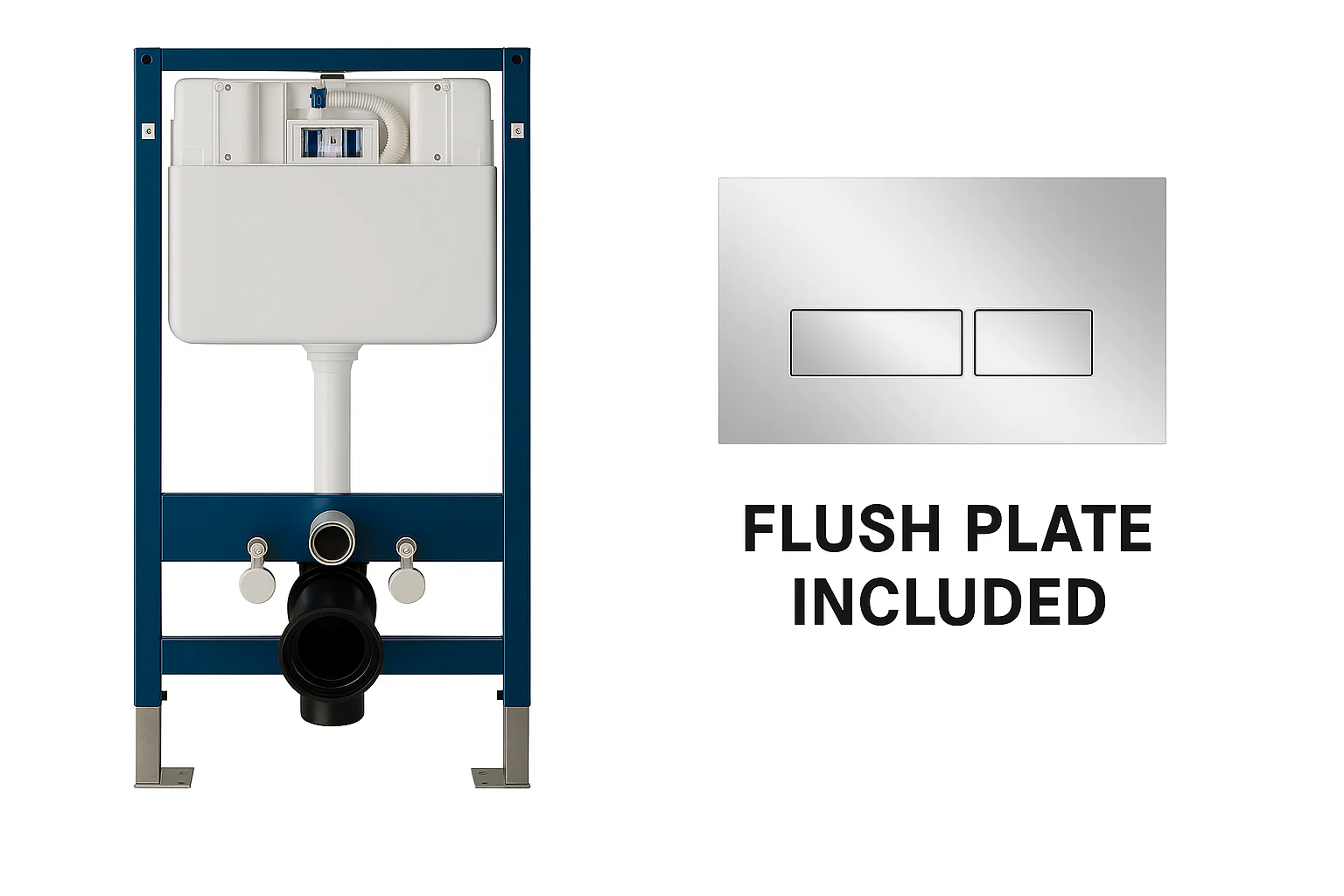

Optional Flush Plate:

• Available finishes: Black, Chrome, White

• Dual-flush mechanism for water efficiency (6L/3L)

• Dimensions: W 240 mm x H 150 mm

Whether you're fitting out a new space or upgrading an existing system, this concealed cistern frame offers a reliable, efficient solution with a sleek finish.
